How to tell if an industrial valve is open or closed?

Learn how to recognize the open or closed position of an industrial valve

Understanding whether an industrial valve is in the open or closed position may seem trivial, but it is a fundamental aspect for the correct functioning of a system. Especially in industry, where safety, precision, and efficiency are essential, knowing how to read the position of a valve-be it a ball, butterfly, or other type-makes all the difference.

Let's see together how to recognize the various configurations and what are the most common visual and mechanical signals, with a focus on ball and butterfly valves, among the most widespread in industry.

Ball valve: open or closed?

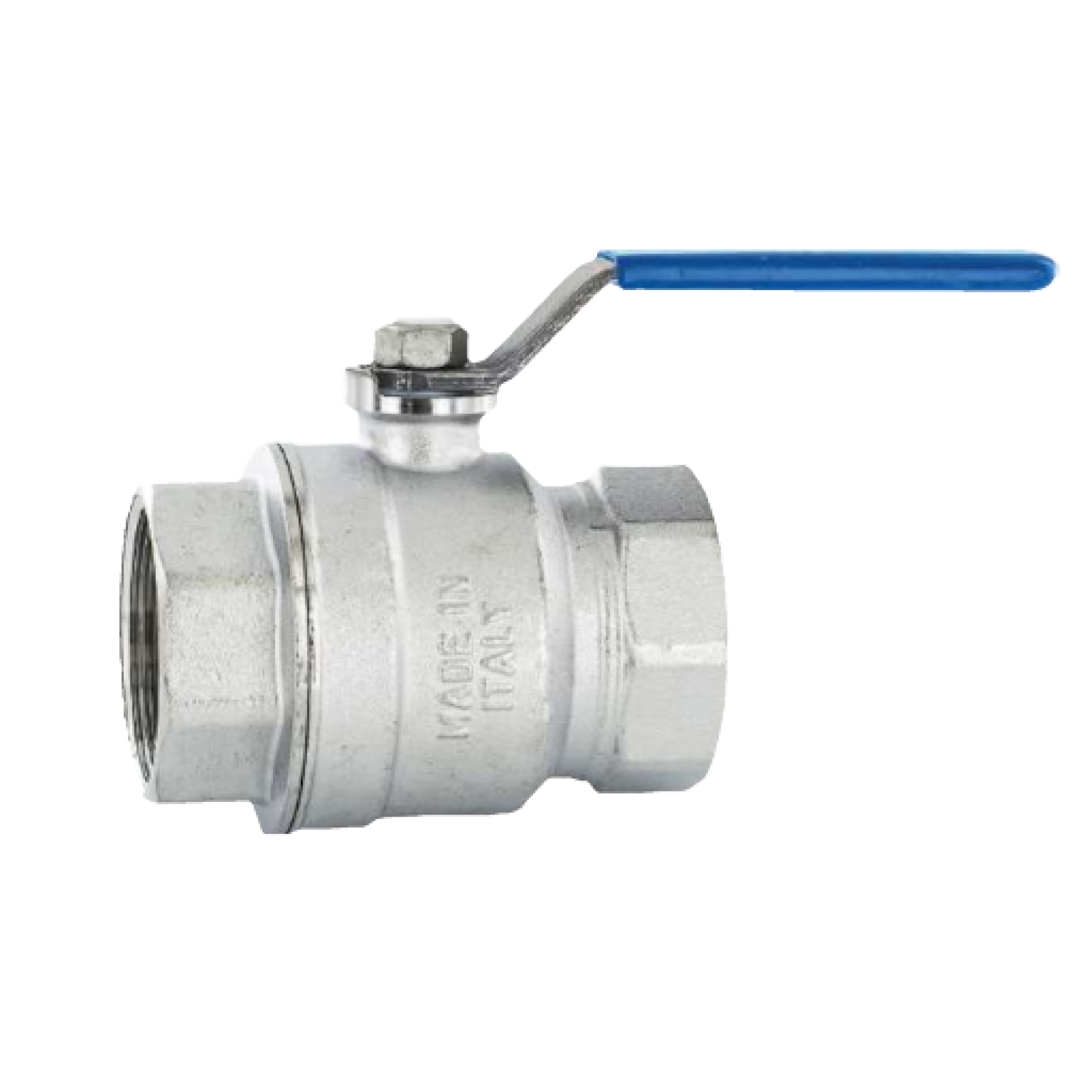

Ball valves are among the most widely used for fluid control due to their simplicity and reliability. Their operation is based on a perforated sphere which, by rotating on an axis, opens or interrupts the passage.

Understanding whether a ball valve is open or closed is actually very simple. The basic rule is to observe the position of the lever relative to the tube:

• if the lever is parallel to the pipe, it means that the internal hole of the ball is aligned with the water flow, so the valve is open and the water can pass freely;
• if, on the other hand, the lever is perpendicular (that is, it forms an angle of 90° with the pipe), the hole is closed with respect to the flow, so the valve is closed.

In some leverless models, the position can be determined by looking at a notch or small line on the valve pin: when the notch is parallel to the pipe, the valve is open; when it is transverse, it is closed. In models with electric or pneumatic actuators, however, there is usually an indicator with the words “OPEN” and “CLOSE” or an arrow that clearly shows the position.

In summary, the position of the lever is always the most immediate signal: lever parallel to the pipe = valve open, lever perpendicular = valve closed. This rule applies to almost all two-way ball valves; for three-way valves, however, you should always check the diagram drawn on the handle, which shows which ducts are connected to each other.

Butterfly valve: how to tell if it's open or closed?

Understanding whether a throttle valve is open or closed is quite intuitive because - as with ball valves - the position of the lever or actuator clearly indicates the state of the internal disc. In most models, if the lever is parallel to the pipeline it means that the valve is open, since the inner disk is aligned with the fluid flow and allows the passage of water. When the lever is perpendicular to the tube, however, the disc is rotated 90° and positions itself edgewise with respect to the flow, completely closing the passage. This direct relationship between lever orientation and disc position allows you to quickly understand the valve state, even remotely. In handwheel models (i.e. with a wheel instead of a lever), the status indication is often provided by a graduated scale or an arrow on the valve body showing the opening percentage, especially useful for systems where the valve is also used to regulate the flow and not just to interrupt it.

Butterfly valves equipped with electric, pneumatic, or hydraulic actuators typically feature visual or digital indicators that show the position of the disc, often with markings “OPEN/CLOSE” or with a hand that rotates 90° to follow the internal movement. Even in these cases, the logic remains the same: disk parallel to the flow = valve open, disk perpendicular = valve closed. It is important to remember that, unlike other types of valves, the throttle valve can be left partially open to adjust the flow rate, but in this case it is best to rely on the reference notches or position indicators to avoid maneuvering errors.

Other valves: distinctive opening and closing marks

Other types of industrial valves also have precise signals that indicate their condition:

• gate valve: the handwheel rises visibly when the valve is open. In visible stem models, the position can be clearly read.
• Globe valve: Often equipped with a visible threaded stem that rises or falls depending on the position.
• Check valve: It does not have direct manual control. It opens or closes automatically according to the flow pressure.
